Hand Pumps

Semi-rotating wing pump

Application

The pump is suitable for the following liquids: water, diesel fuel, bunker oil, alcohol, parafine, all not aggressive liquids, greasing oil up to a viscosity of 40 °E, LPG with special shaft sealing, thermo oil in special design.

Function and operating description

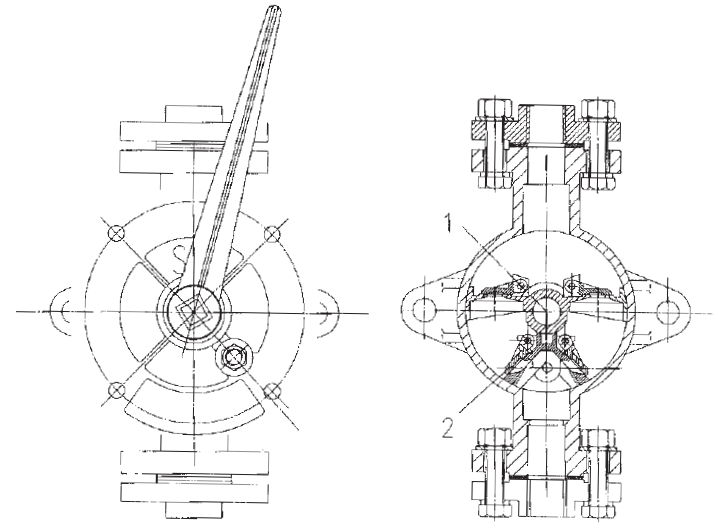

The function of the pump will be performed by moving the pump shaft by swinging the hand lever and the piston wing (1) with the integrated flaps in connection with the suction divider (2) and its integrated flaps, the medium will be sucked in and discharged. The integrated flaps in the suction divider (2) and the piston wing (1) will open under the left or right side of the pump. They will close by further strokes in the opposite direction by the medium when discharging. In connection with the Semi-Rotating Piston Wing Pump and an electrical pump as compact unit the discharged medium from the electrical pump passes through the piston wing pump and opens the flaps. As soon as the flow is interrupted the flaps will close and prevent the backflow. In this case the flaps are acting as a check valve.

Pump features

• Piston wing conical, for safe operation and long-life piston wing control flaps with grinded seat bronze bearing for shaft in body and cover O-ring sealing between cover and body material and material combination corrosion safe additional reinforced mounting possibility freezing safe for water application (drain screw) quality and function control for each pump for zero-leakage additional check valve integrated self-priming is guaranteed by integrated check valve

Materials

• Casing: cast iron, piston wing and suction divider brass, bearing bronze for seawater we can deliver material bronze

Connection

• oval flanges with counter flanges

Suction lift

• max. 7 m

Discharge head

• max. 25 m

Temperature

• max 80 ºC (special design up to 200 ºC)

Size No.	Connection Inch	Capacity ca. l/min	Number of strokes/min	Weight ca. kp
00	3/8	7,5	80	3
0	1/2	11,5	65	4
1	3/4	17,25	60	6
2	1	22,5	55	8
3	11/4	29	50	10
4	11/4	43,25	50	12
5	11/2	53,5	45	15
