Electrically Driven Submersible Pumps
Application
Drinking water supply to cities and communities, housing pumps, booster-stations, water supply for industrial and commercial use, irrigation plants, drainage, fountain systems, air-conditioning systems.
Design
-

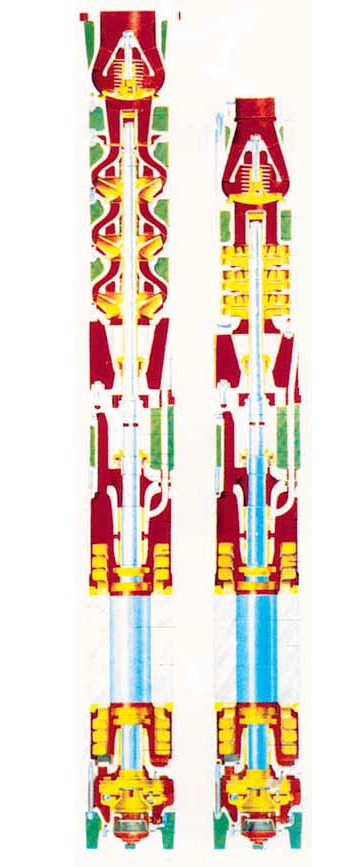

Vertical, multi-stage high pressure centrifugal pump with semi-axial or radial impellers, built-in non-return valve with submersible electric-motor and vulcanized submersible electric cable.
Connections
-
Suction connection: with strainer between pump and electric motor
-
Discharge connection: threaded sleeve or flange
Temperature
-
suitable for clean cold water, temperature up to max. 40° C. Special design for warm water supply for approx. 80° - 90°C.
max. Capacity
max. total head
Materials
-
Casing: cast iron, stainless steel or bronze
-
Impellers: bronze, stainless steel or plastic
-
Shaft: stainless steel
Driver
-
Electric motor, single phase and three phase as squirrel-cage motor. Submersible motor in collimator execution, which is filled with operating fluid including anti-freeze agent before leaving the factory. Three phase motor for direct online starting, over 3 kW for direct online, starting with transformer, starting with soft starter or for star-delta starting.
Power transmission
Bearing
-
medium lubricated sleeve bearing
