Marine Aggregates

Products > Marine Aggregates

Hydrophore Compact Units

consisting of: Filter, Sterilization and Calorifer

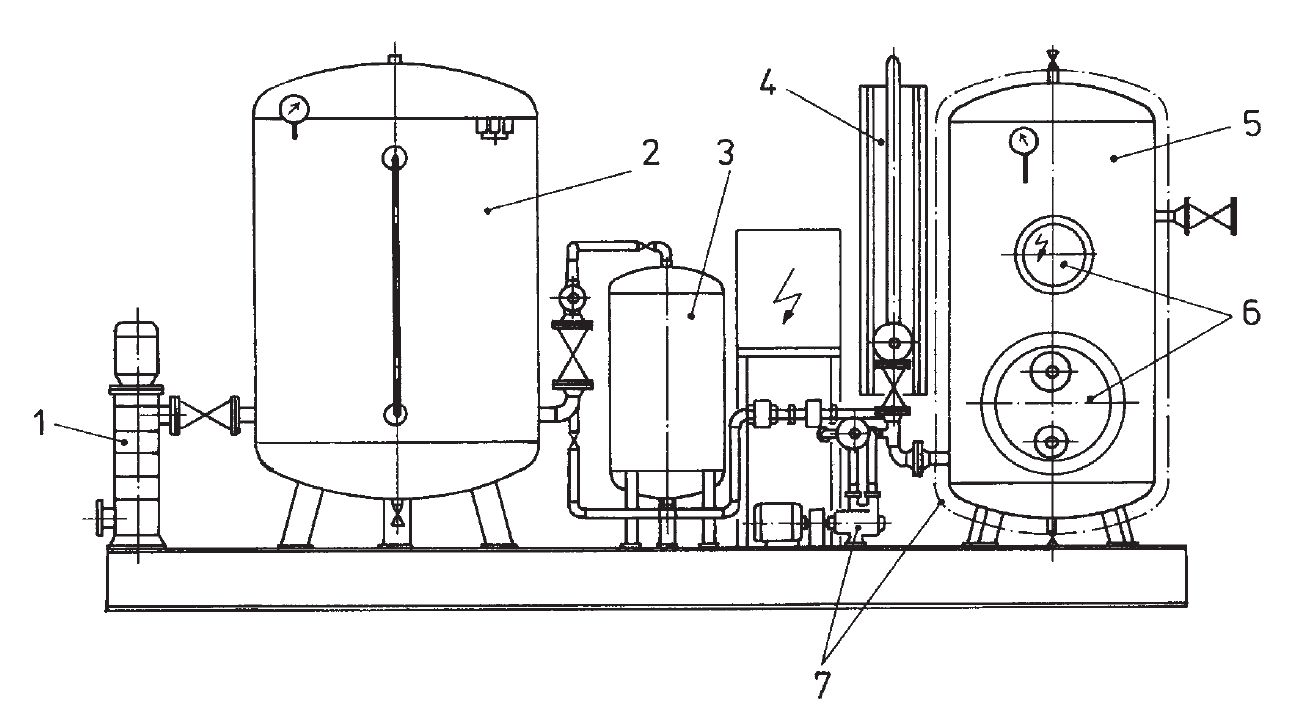

Range of components assembled acc. to your requirements, piped and wired ready for operation on common base frame.

• Hydrophore pumps: 1 or 2 pisto or self-priming centrifugal pumps (1)

• Pressure Vessel: galvanized steel or inside coated, or with copper inside or made of stainless steel (2)

• Armatures: brass, bronze, cast iron or rubberized

• Piping: galvanized steel, copper, stainless steel or PVC

• Filter: multiple layer drinking water treatment filter with activated dolomite and hydro-anthracite (3)

• UV-dosages: ultra-violet disinfection of water (4)

• Calorifer: galvanized steel or inside coated, or with copper inside or made of stainless steel (5)

• Heating: with electric heating flange and/or with steam heating coil (6). Accessories for heating steam regulating, circulating pump (7) etc. Insulation will be included automatically.

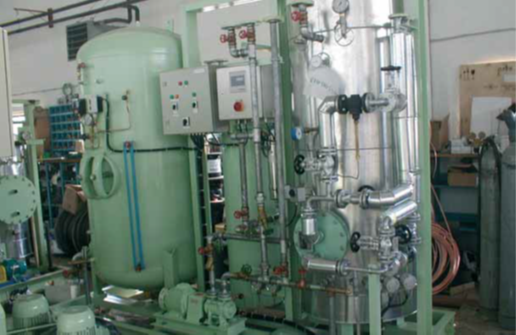

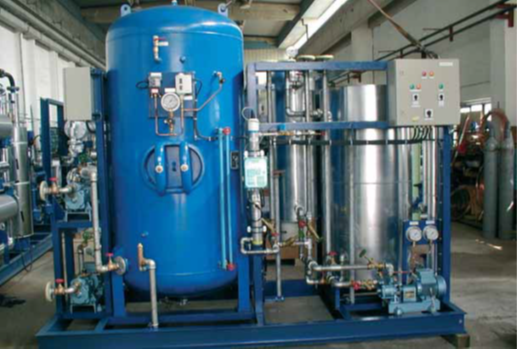

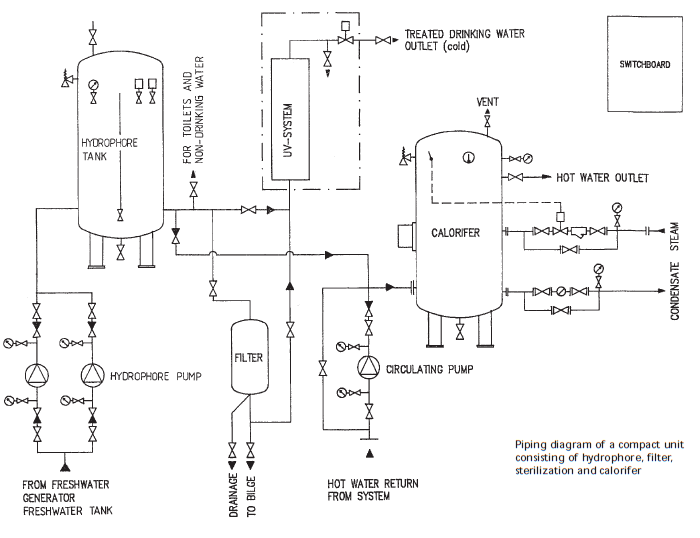

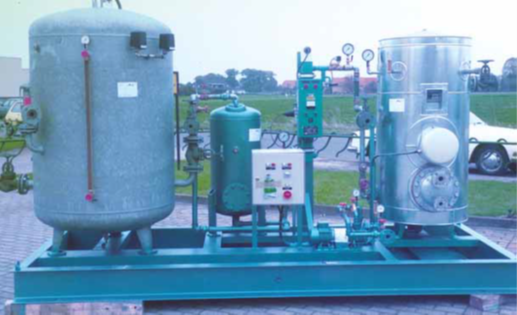

• Compact units consisting of hydrophore, filter, sterilization and calorifer

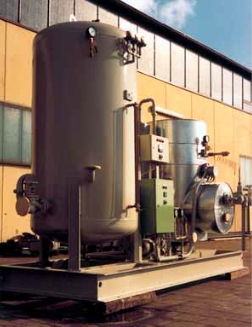

• Hydrophore compact units

• Compact units consisting of hydrophore, filter, sterilization and calorifer
